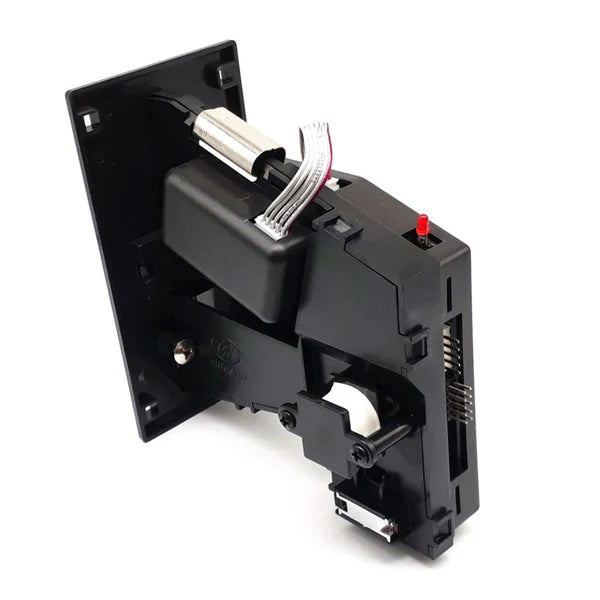

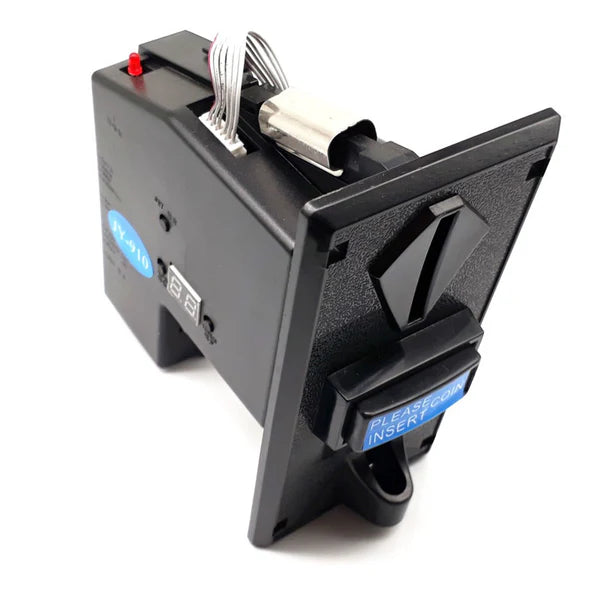

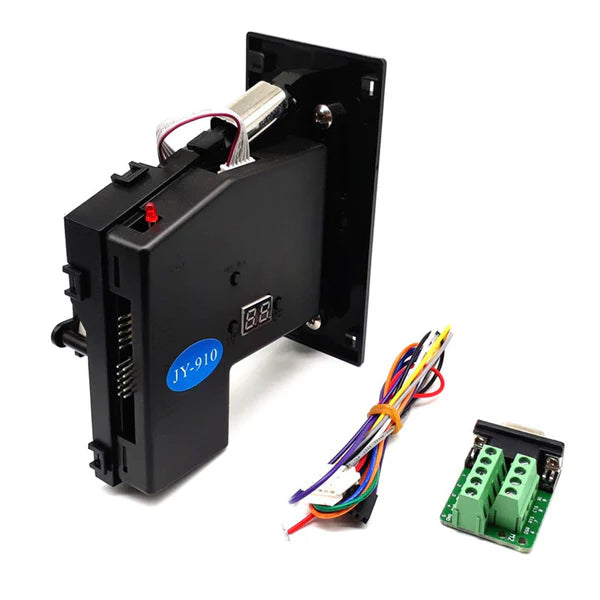

JY-910 RS232 PLASTIC Pulse Output Multi Coin Acceptor 12 Types
Original price was: ₹ 7,000.00.₹ 5,000.00Current price is: ₹ 5,000.00.
| Weight | 0.85 kg |
|---|
1 in stock
With JY-910 Plastic Multi PC Coin Acceptor manage and accept multiple types of coins. Connect to your computer via RS232 or USB port, and let its intelligent technology recognize and memorize up to 12 different coins. Perfect for vending machines, arcade games, and self-management systems. Easily programmable with its latest technology.
Feature
1. On site programming, can be programmed by Hand-Held Programmer or PC.
2.12 coin channels divided as 2 coin banks (12=6+6. ):
Bank_A and Bank_B (set via a switch).
For setting examples:
-a. Bank_A set with country’s coins, Bank_B set with token.
-b. Both Bank_A and Bank_B set with coins but set different credit rate (two “price”).
3. Optional: 4-Digits DISPLAY (show the denominations you insert and the accumulated amount).
4. Output modes: -A. Pulse/Totalizer output -B. Output as a timer: -C. Parallel output: RS232 output (Data protocal and test software can be downloaded)
5. There is an inhibit line for the host machine.
Specification:
Coin Diameter: 15mm-32mm
Coin Thickness: 1.2mm-3mm
Operating Voltage: DC +12V ±10%
Accuracy rate of identification: 99.5%
Signal Output: Pulse and RS232
Working current: 65mA ±5% Temperature: -15~75 Degree
Atmospheric Pressure: 86Kpa—106Kpa
Speed: ≤0.6s

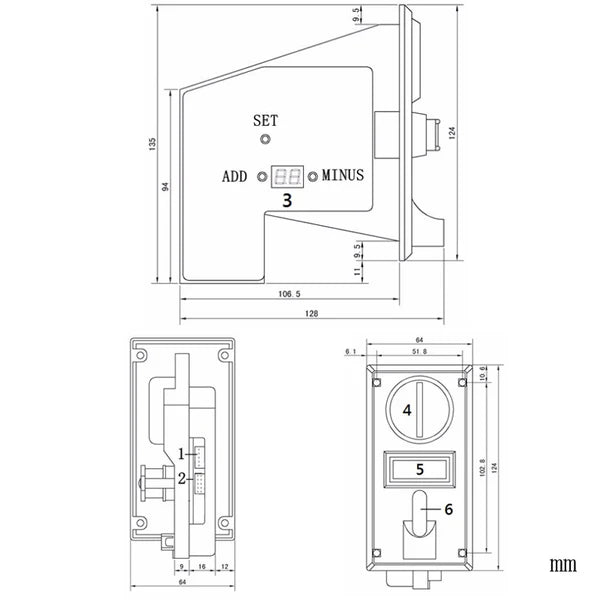

Connection:
POWER: you need to connect power even if you use RS232 only
